TPL12800

发布时间：2020-12-07 10:25  浏览：

TPL12800

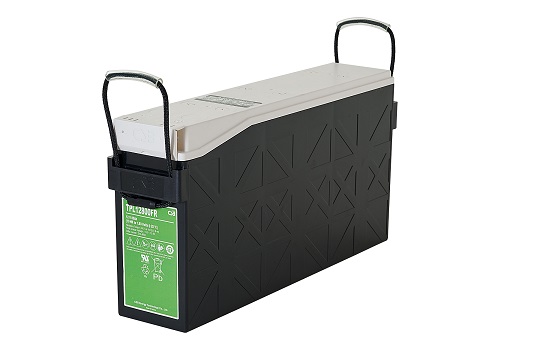

12 V 80.0Ah TPL 12800 is a front terminal battery up to 12 years expected life under normal float charge. As with all CSB brand batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

规格书

局数

6

电压值

12 V

安培数	80Ah @ 10hr-rate to 1.80V per cell @ 25°C (77°F)

重量	Approx. 38.30Kg (80.01 lbs)

最大放电电流

800A (5sec)

内阻	Approx. 3.70 mΩ

温度工作范围

Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F)

一般使用温度工作范围

25℃±3℃ (77°F±5°F)

浮充电压	13.5 ~ 13.8 VDC/Unit Average at 25℃ (77℉)

建议充电最大电流

24A

自放电	Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)

端子	I2 thread lead alloy terminal to accept M6 bolt

电槽组材质

Flame Retardant ABS (UL 94-V0)

---
