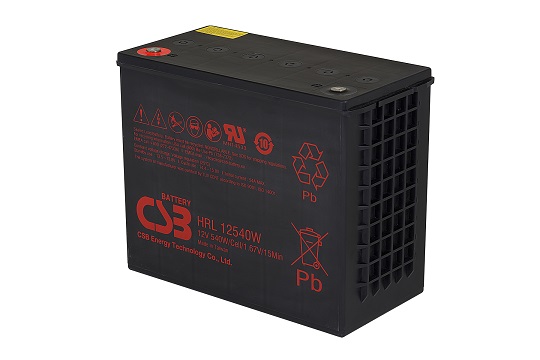

HRL12540W

发布时间：2020-12-04 14:58  浏览：

HRL12540W

12 V 540.0w/cell HRL 12540W is specially designed for high efficient discharge and long life.application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 10 years in standby service.

规格书

局数

6

电压值

12 V

安培数	540W @15 minute-rate to 1.67V per cell @25℃ (77°F)

重量(kg)

Approx.43.9 kg(96.76 lbs)

最大放电电流5秒(A)

800A(5sec)

内阻(mΩ)

Approx. 2.6 mΩ

温度工作范围

Discharge: -15℃ ~50℃ ( 5°F ~122°F ) Charge: -15℃ ~40℃ ( 5°F ~104°F ) Storage: -15℃ ~40℃ ( 5°F ~104°F )

一般使用温度工作范围

25℃±3℃ (77°F±5°F)

浮充使用充电条件

13.5 to 13.8 VDC/unit Average at 25℃ (77°F )

建议充电最大电流

54A

均充使用充电条件

14.4 to 15.0 VDC/unit Average at 25℃ (77°F )

自放电	CSB Batteries can be stored for more than 6 months at 25℃ (77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter.

端子	I2-Thread lead alloy recessed terminal to accept M6 bolt

电槽组材质

Polypropylene(UL94-V0)*Flammability resistance can be available upon request.

---
